Cuckmere Mini Pillbox Variants


Cuckmere Haven’s One Man Pillbox Variants

Ngr TV520977 and 521977

Within the Seven Sisters country park there are two very small and easily missed miniature pillboxes, both are highly unusual and possibly one man defence posts.

Cuckmere Mini Pillbox

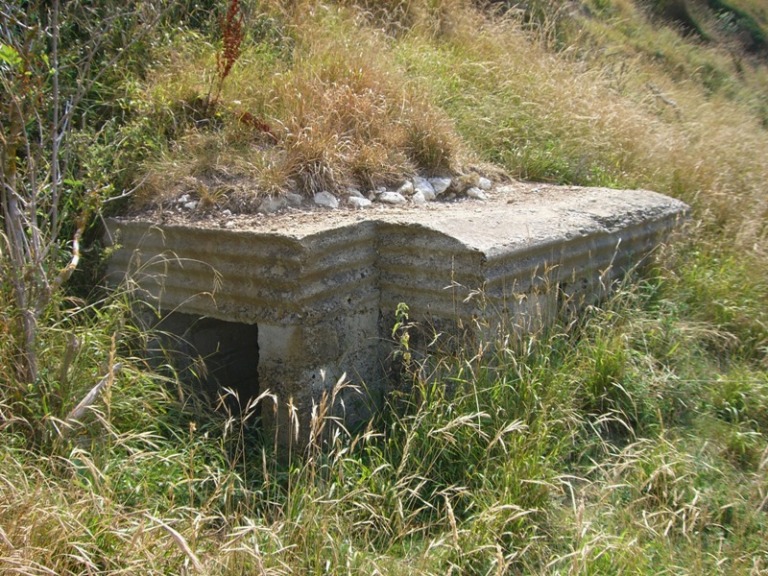

Cuckmere Mini Pillbox @ Ngr TV521977

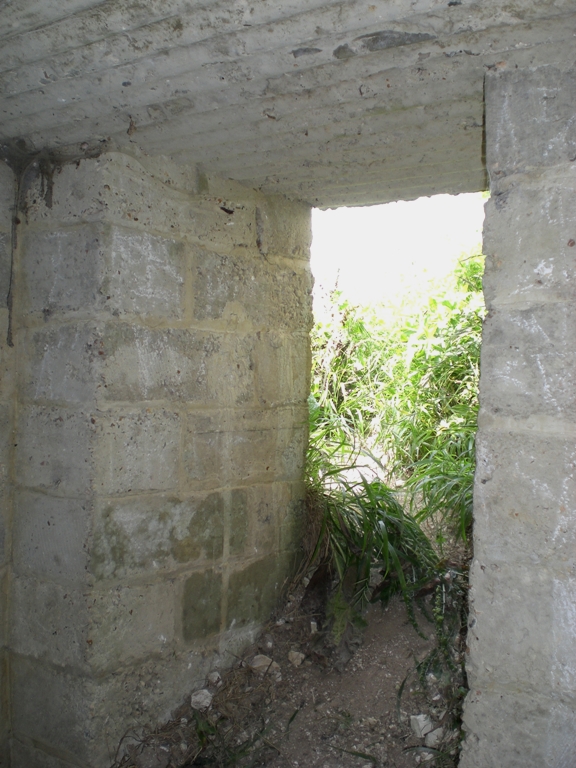

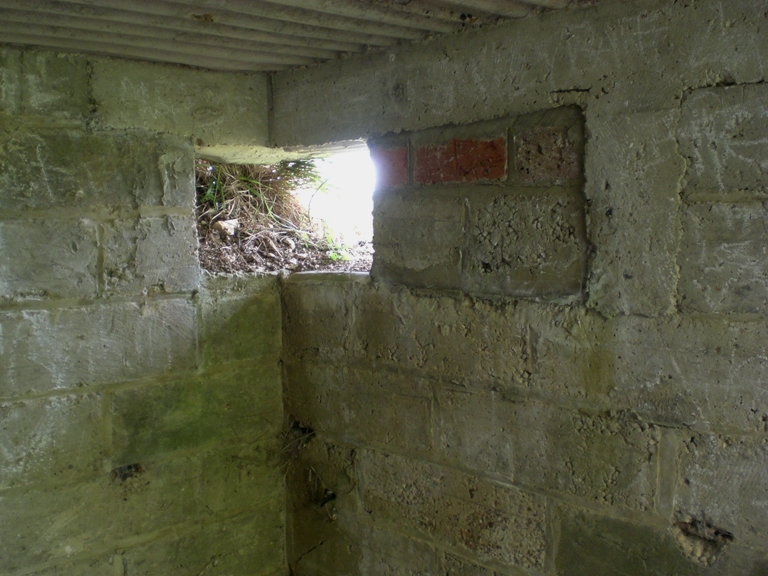

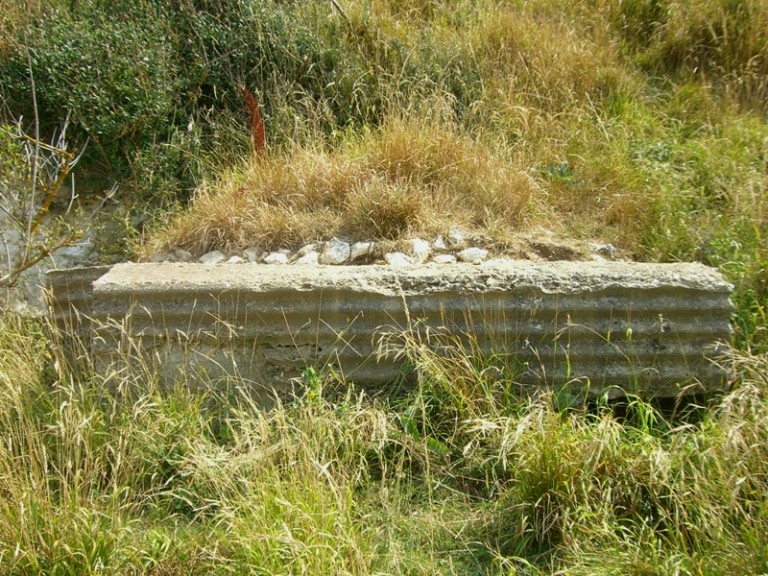

.Sitting in the side of the east valley this small rectangular defence is partially covered by land slippage. The pillbox was constructed using concrete blocks and concrete shuttered using corrugated sheeting, internally it is very cramped and has a single corner loophole that cuts into two faces. It appears from its position [between the two main MG pillboxes] that it may have been an after thought and necessary to cover an area of dead ground that the variant MG pillboxes could not reach at maximum gun traverse.

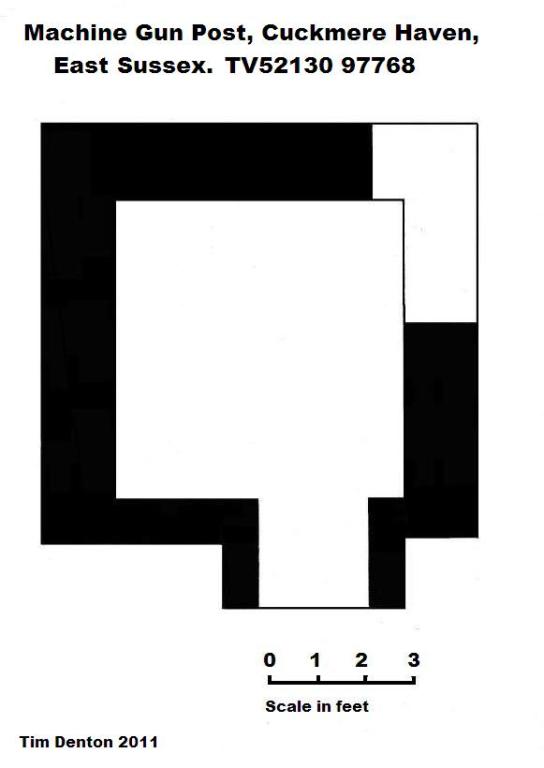

Diagram of MG Post Copyright Tim Denton 2011
Cuckmere Mini Pillbox Variants

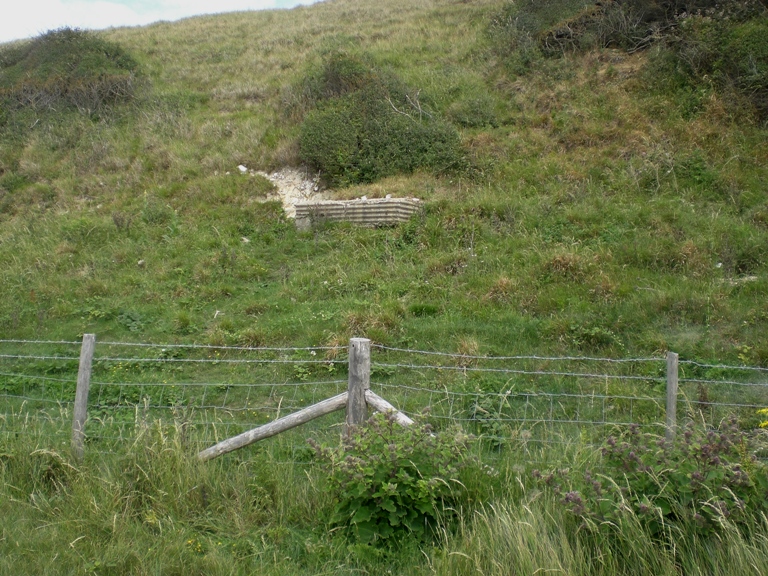

View from the path of Pillbox @ Ngr TV521977
Cuckmere small 062

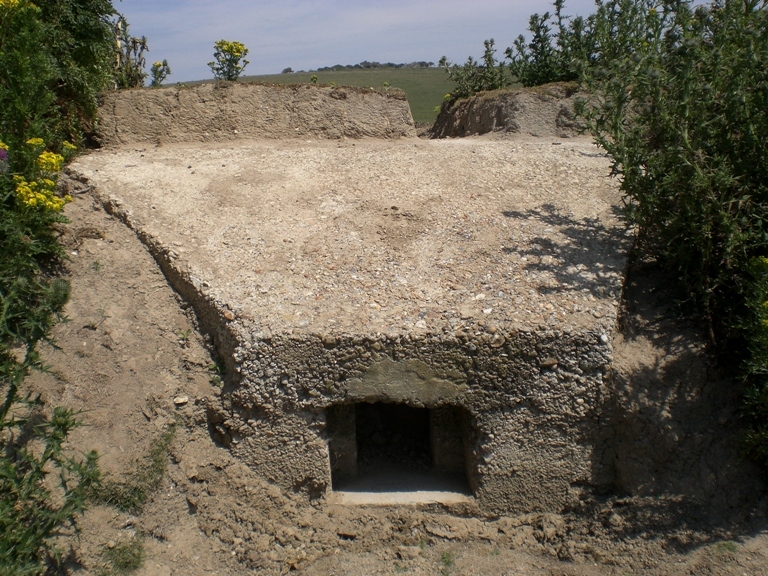

One man pillbox @ Ngr TV520977

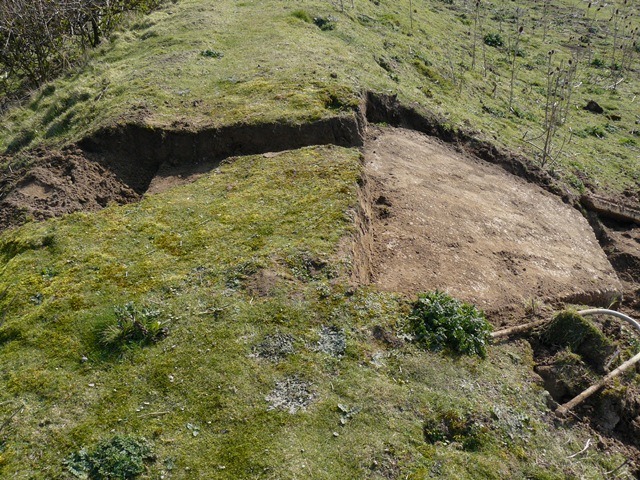

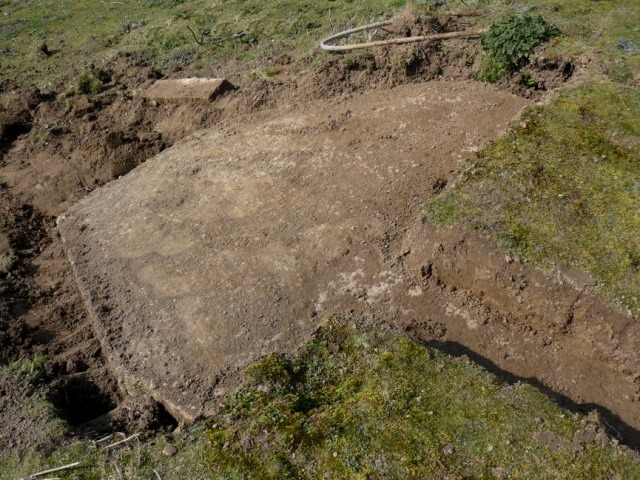

This tiny one man pillbox was re discovered at Cuckmere by Alistair G Kerr early in 2009, he recalls playing in it back in the early 1960s when he went to school in Seaford. The dimensions internally are approximately 5 ft by 6 ft and entry was from the rear. Inside the single loophole are inscriptions throwing light on who constructed the defence in July 1940. From its position set into the bank forward of the Anti tank ditch it would have faced head on any landing on the shore and with provision for a Bren gun would have had a wide angle of fire across the beach.

Cuckmere Mini Pillbox Variants

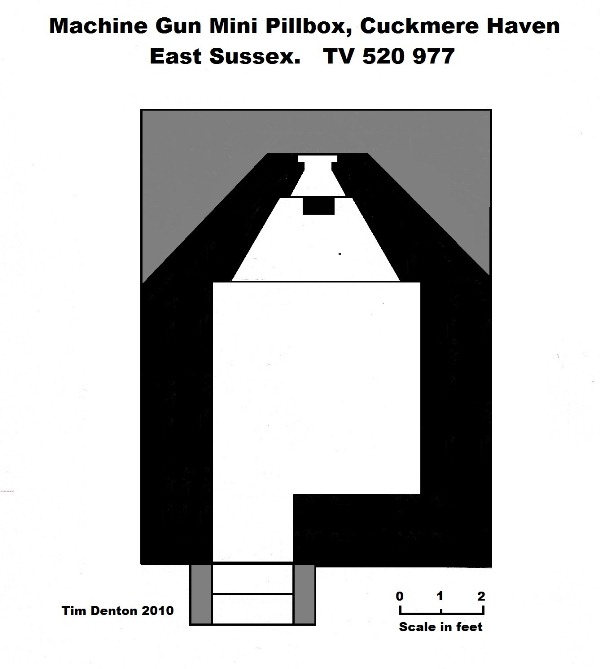

Impression of plan based on measurements and personal testimony of how pillbox looks. Drawing copyright Tim Denton.
Original graffiti in loophole showing who built and when.
Original graffiti in loophole showing who built and when.
