Aldershot Command’s 2 – Pounder Emplacement


GHQ Line B Anti Tank Defence.

By Tim Denton.

Aldershot Command 2 Pdr AT Emplacement

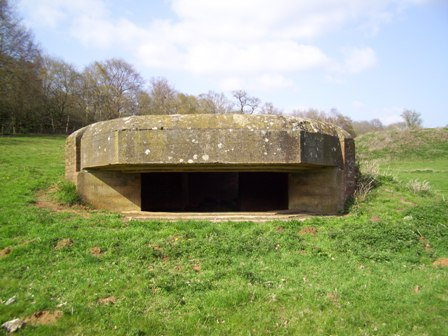

Aldershot Command 2 Pdr AT Emplacement, River Wey, Peper Harow, Surrey.
Photo Tim Denton
AT Emplacement, Peper Harow

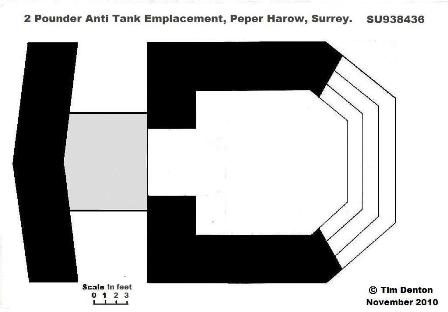

Plan view of 2 pounder emplacement showing the massive V shaped rear protective blast wall and porch attached to the enclosed front section. Drawing © Tim Denton.



This design of anti tank emplacement is unique and can only be found on GHQ Line B between Elstead and west of the A3 at Peper Harow in Surrey, each defence covers wide open fields as well as important road bridges across the River Wey.

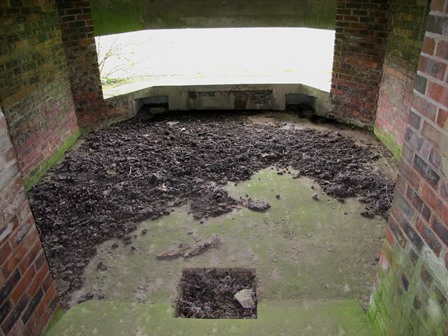

Looking closely the defence is modelled on the field gun emplacements or modified Type 28 pillbox but was purpose built to operate the QF 2 pounder anti tank gun, recesses can be found in the forward floor and below the embrasure in which held the guns front leg spades.

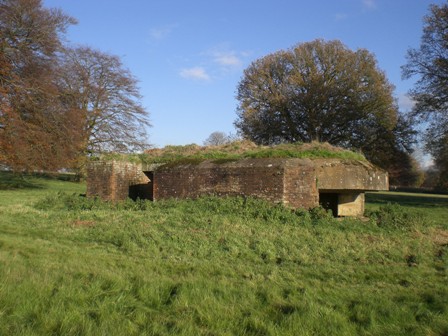

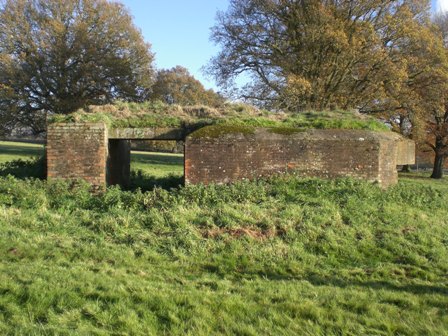

Two Pounder gun emplacement in Elstead, visible from public footpath.
Two Pounder gun emplacement in Elstead, visible from public footpath.

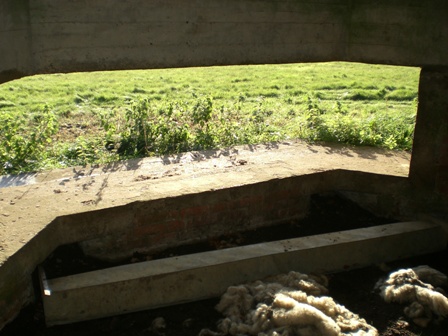

The front embrasure is completely different to that of the standard type 28 design as it protrudes and curves around, this gives the gun a much better traverse of around 90 degrees,there is no provision for additional weapon positions but each 2 pounder emplacement location is strengthened defensively by an infantry Type 22 or shellproof Type 24 pillbox positioned [depending on location] between 10 and 150 yards away.

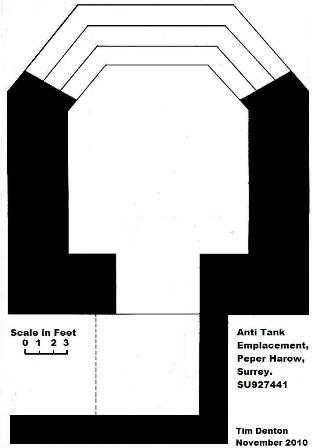

Plan of 2 Pounder AT Emplacement. Copyright Tim Denton 2010
Plan of 2 Pounder AT Emplacement.
 © Tim Denton 2010

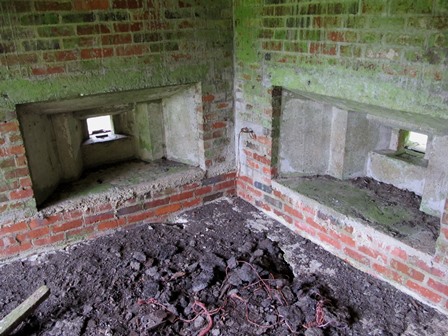

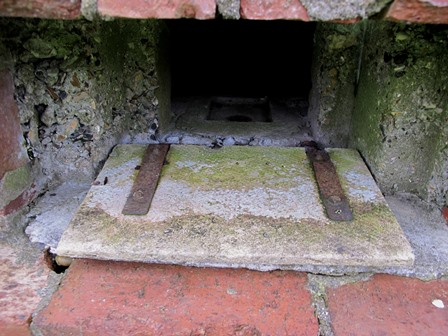

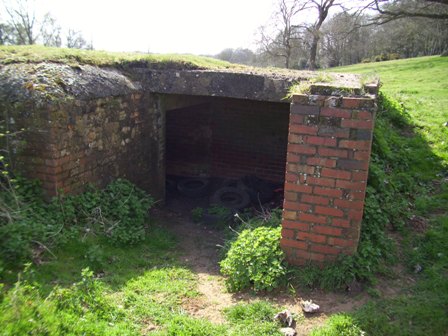

The overhanging front of the emplacement was made in concrete giving it a smooth curved finish, this allowed better protection and deflection of enemy fire. all of the walls are shell proof and are built to a thickness of 51 inches. There are several variations of  design, the difference being the rear entrance blast wall protection, one example has a wrap around entrance with the doorway covered by a porch where the other examples have a massive but very shallow V shaped central blast wall allowing entry exit on either side, others have L shaped rear wall with loophole protection. All of the large defences are camouflaged with grassed roofs and additional cam net hooks are set into the rear blast wall and sides. Overall the gun emplacement is of smaller dimensions than the field gun emplacements found locally on Line B.

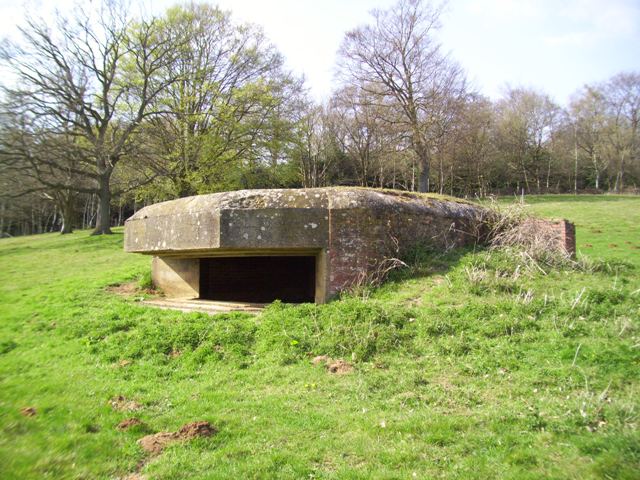

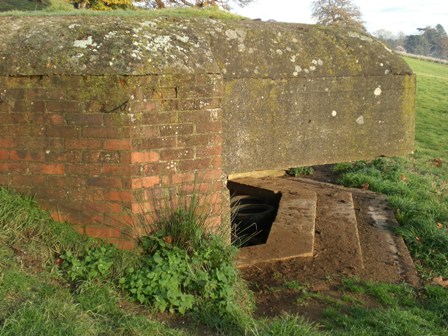

Aldershot Command's 2- pounder emplacement,Peper Harow, Surrey. Photo Tim Denton
Aldershot Command’s 2- pounder emplacement,Peper Harow, Surrey. Photo Tim Denton

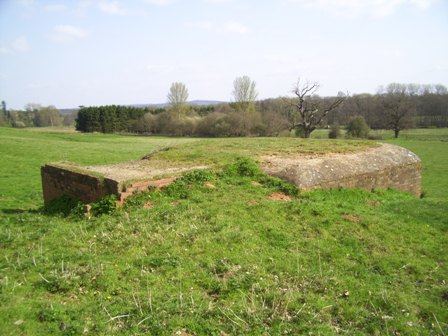

One example of this attractive design is dug into the hillside at Peper Harow giving the emplacement a very low profile blending well into the sloping field. At least three of this design were camouflaged as buildings with pitched tin roofs. Only six of this type are known to exist and all are on private land, two can be seen from a public footpath at Polshot Manor in Elstead, the other two are on the private estate of Peper Harow and permission must be sought to view before visiting.

Photos,text and diagrams by Tim Denton 2013
